Countersteer R32 AC Conversion Kit

We do a lot of AC service here in the shop. The OEM compressors are always failing from age and near impossible to find. We've finally completed our conversion kit to install a USA available Infiniti J30 (all years) AC compressor onto the RB20/25/26 engine in your R32 chassis only.

This kit does two things we are very proud of:

1) Removes the bulky OEM AC bracket and tensioner reducing front end weight.

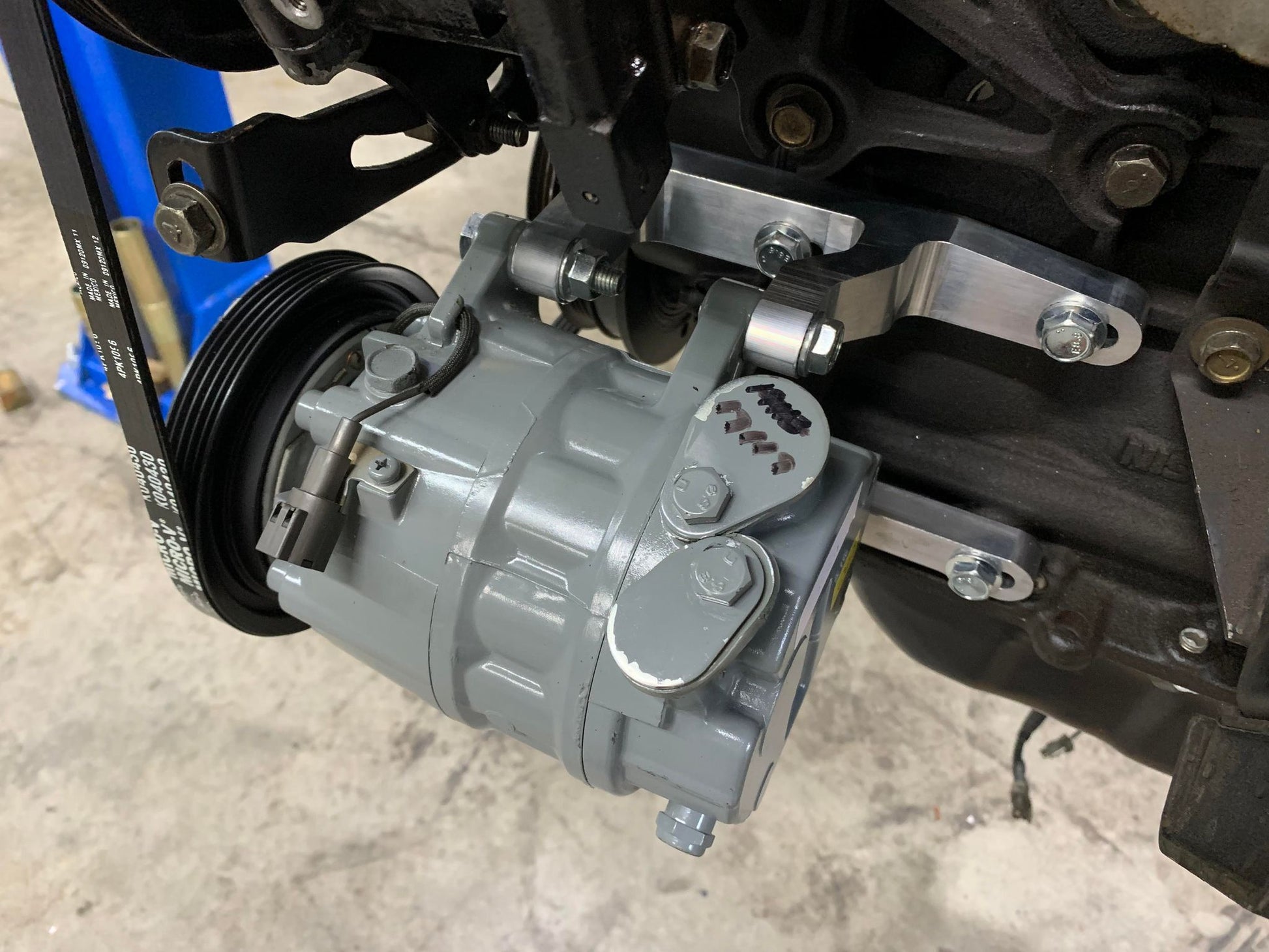

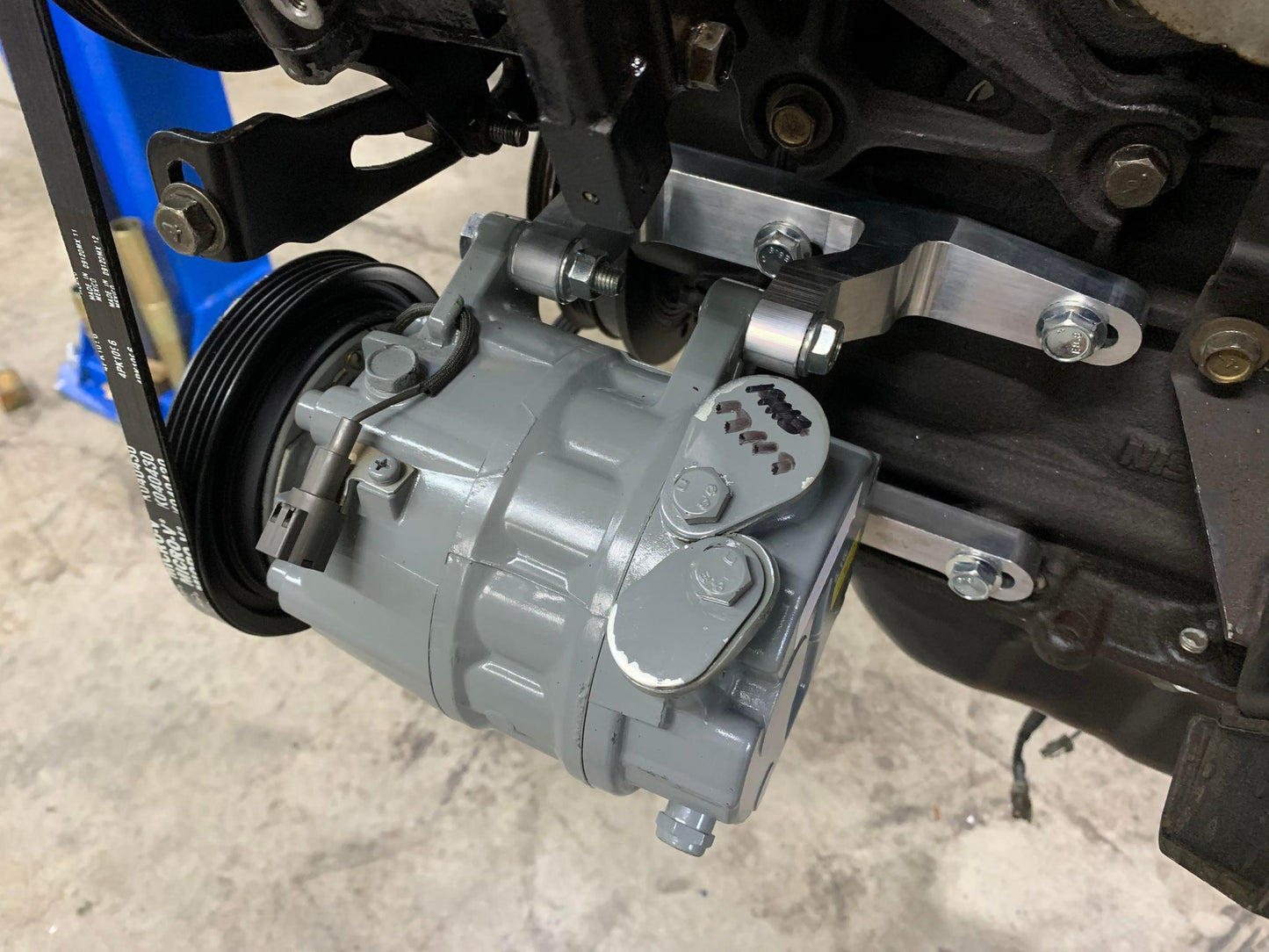

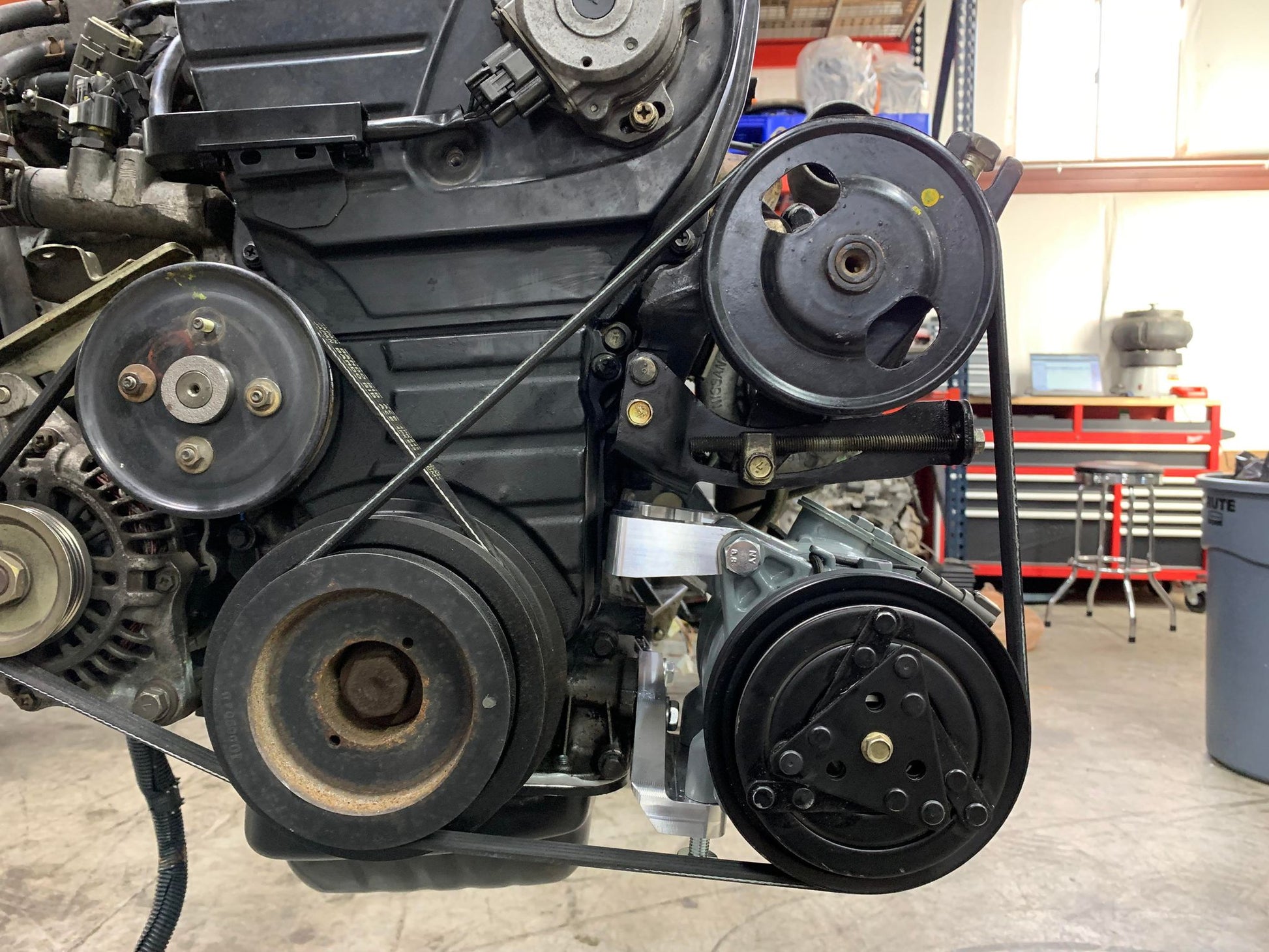

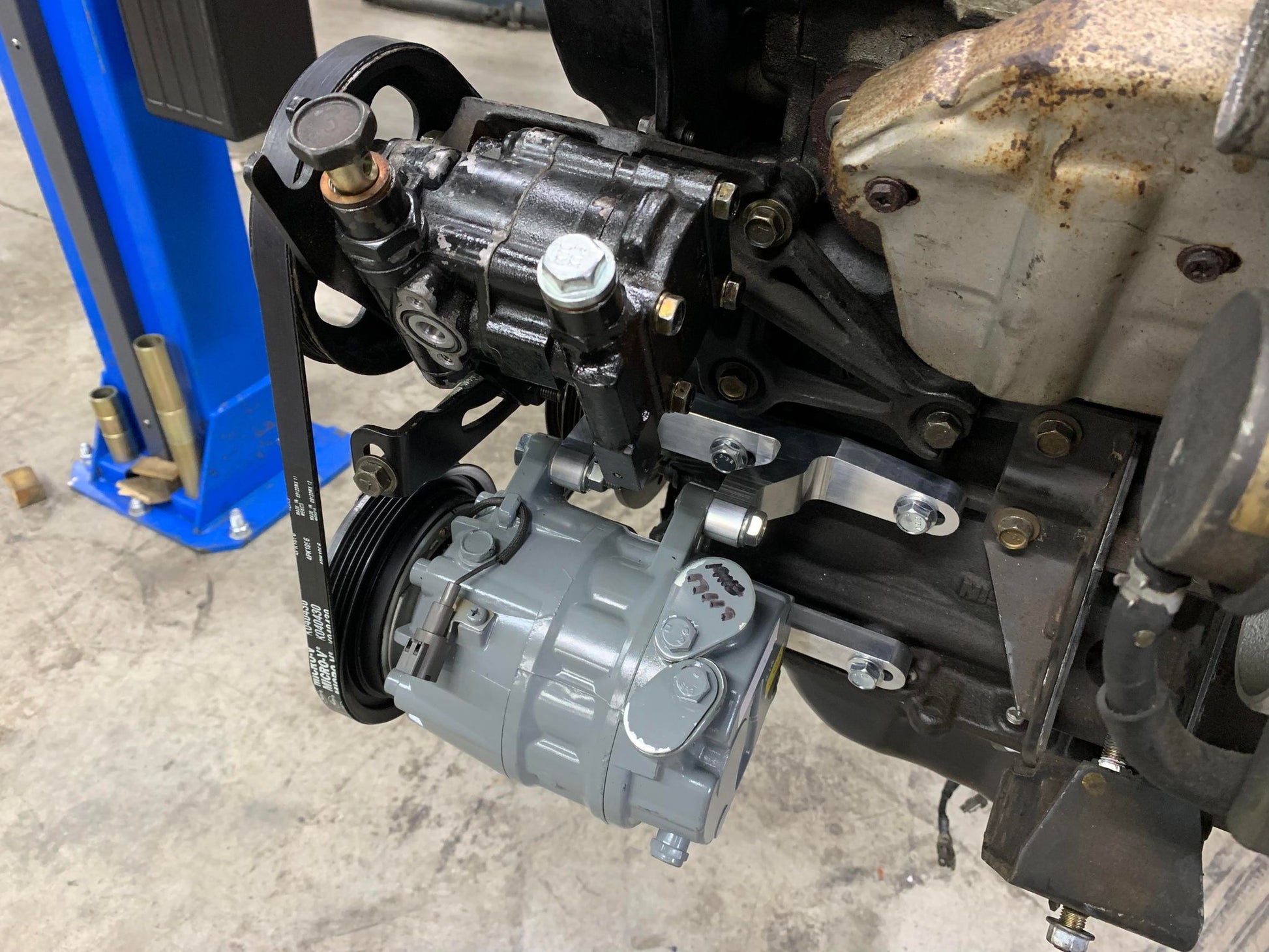

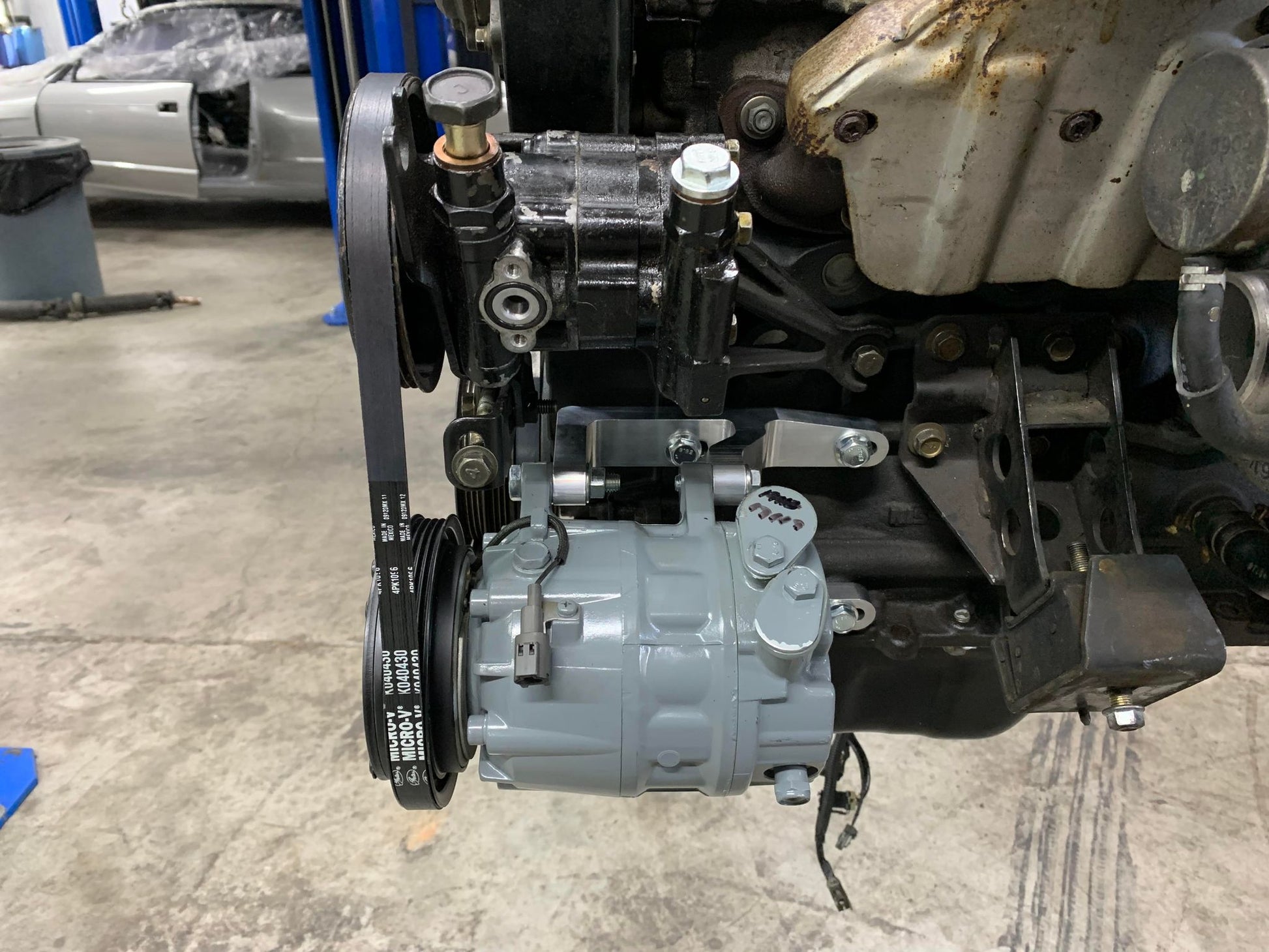

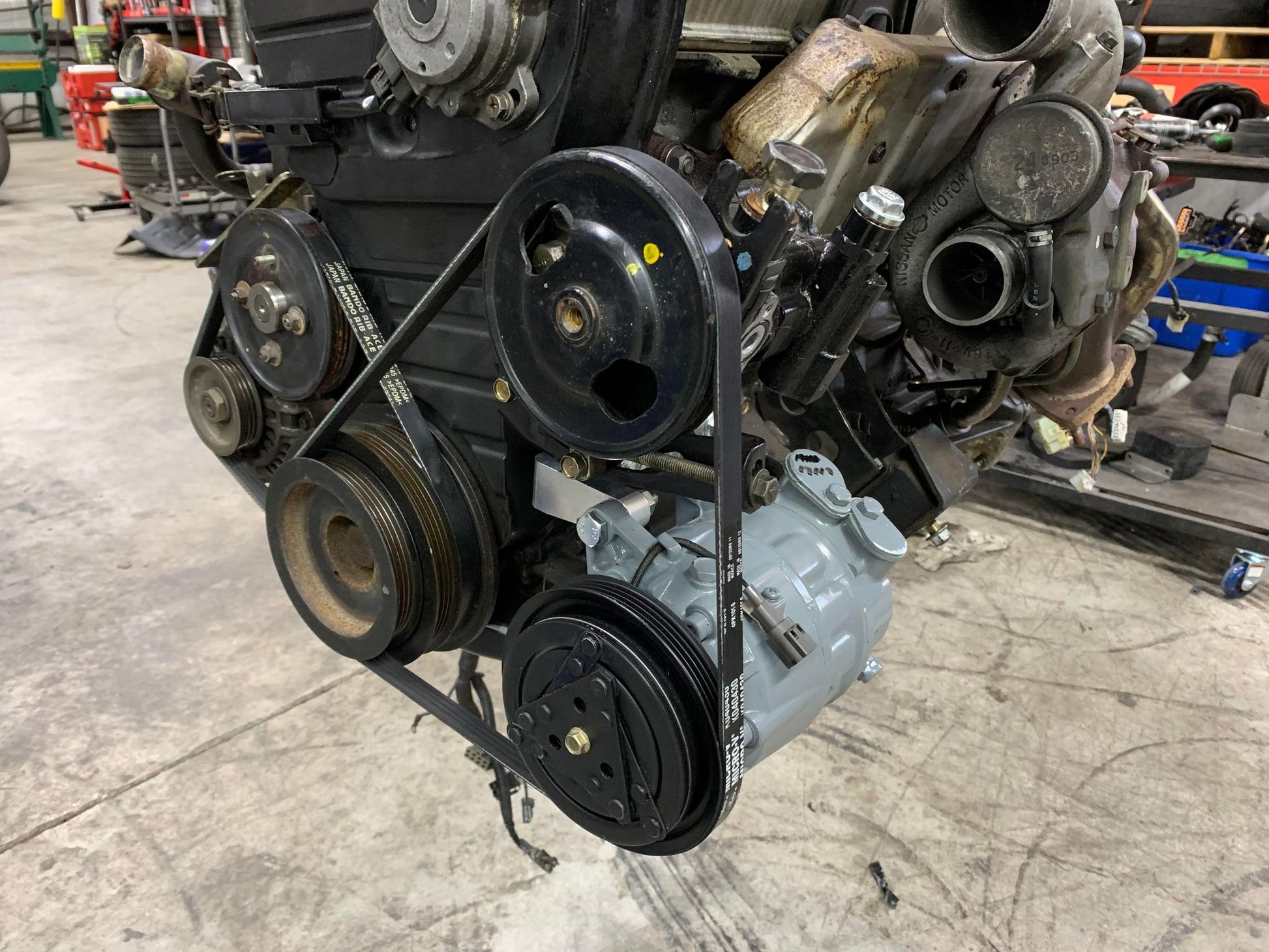

2) Moves the compressor forward allowing it to share the same belt as the power steering pump. No more throwing belts in high rpm and limiter. You will now tension the AC belt along with the power steering using it's tensioner. Also allows for more turbo kit clearance in some cases.

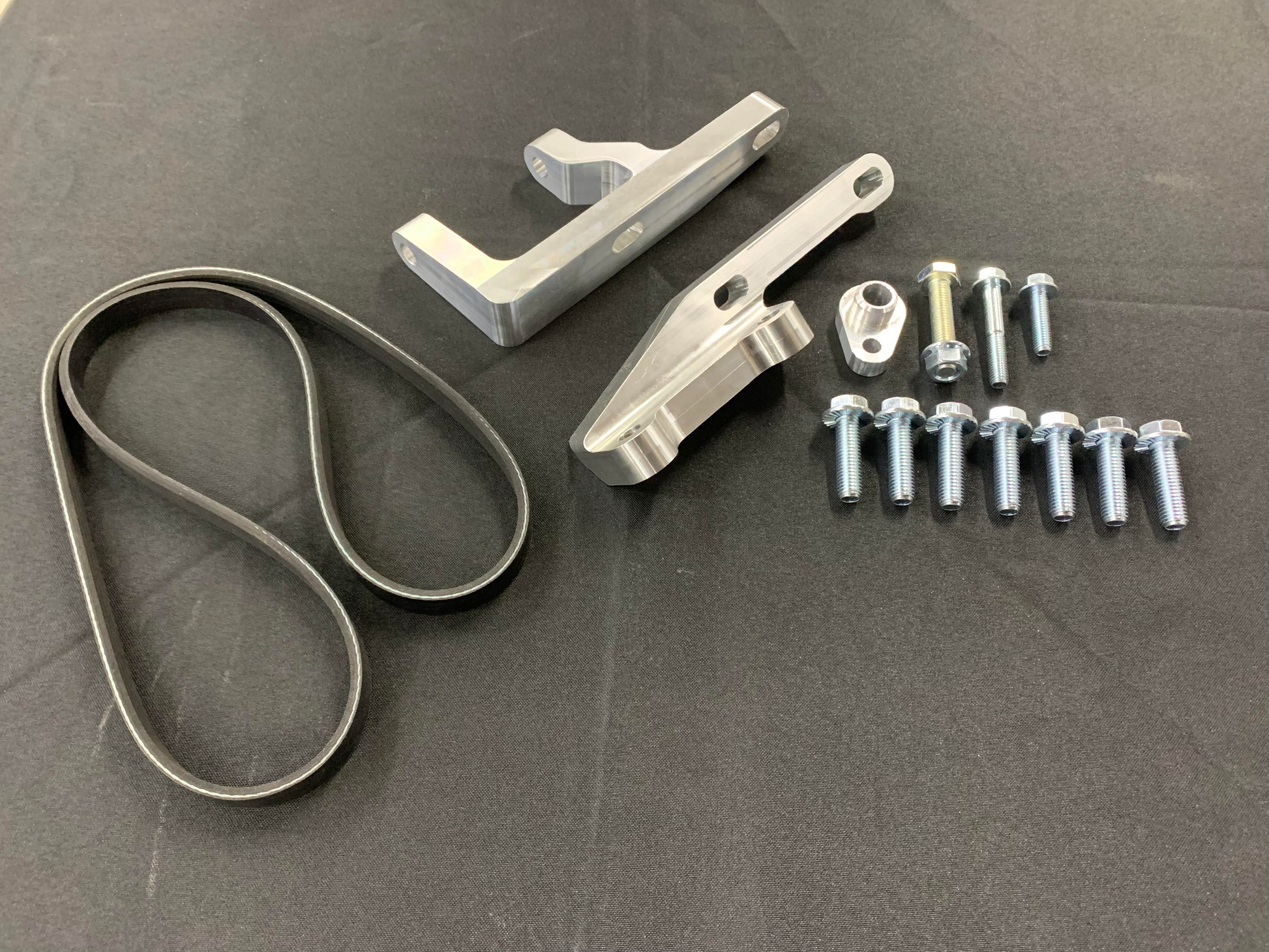

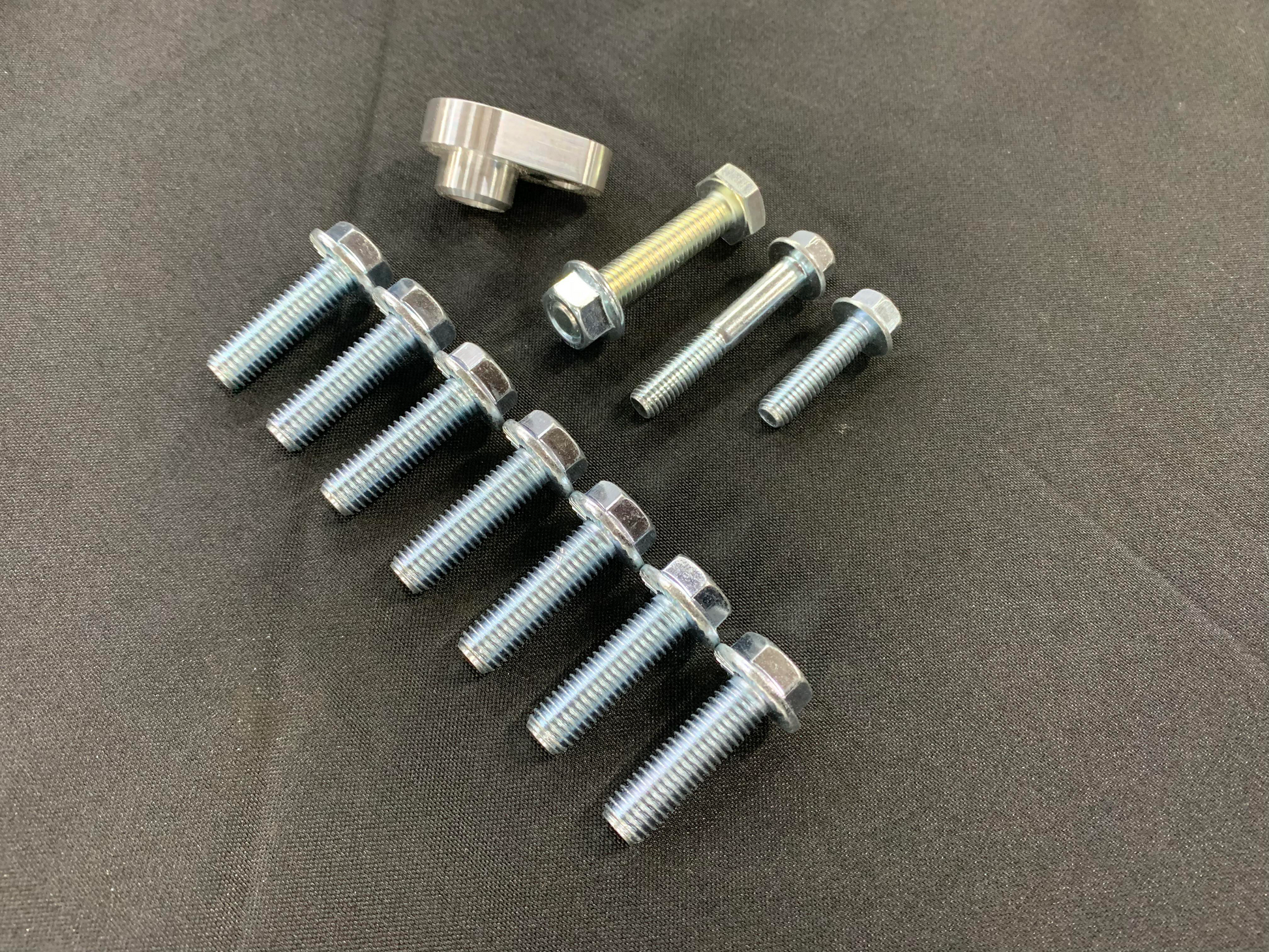

Includes / Specs:

-two adapter brackets

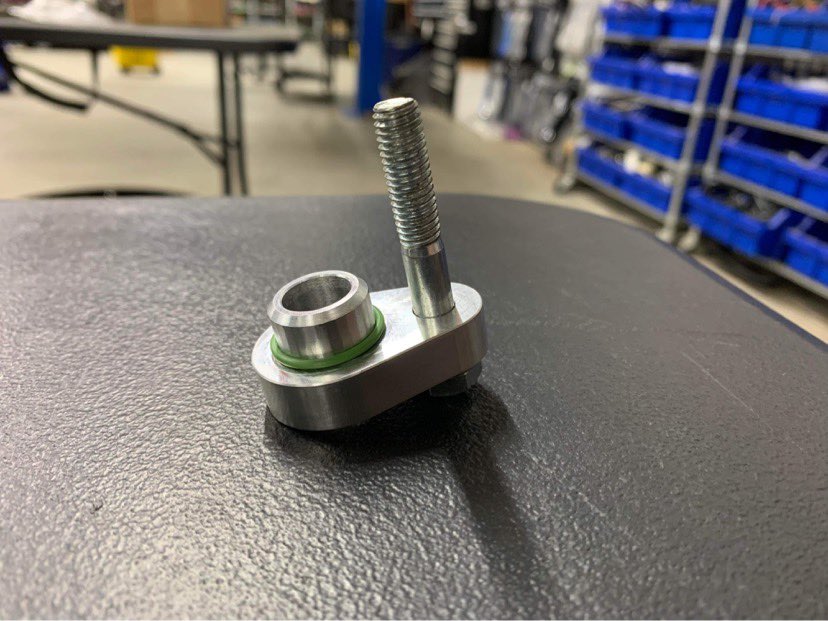

-one adapter fitting

-all needed hardware

-replacement drive belt

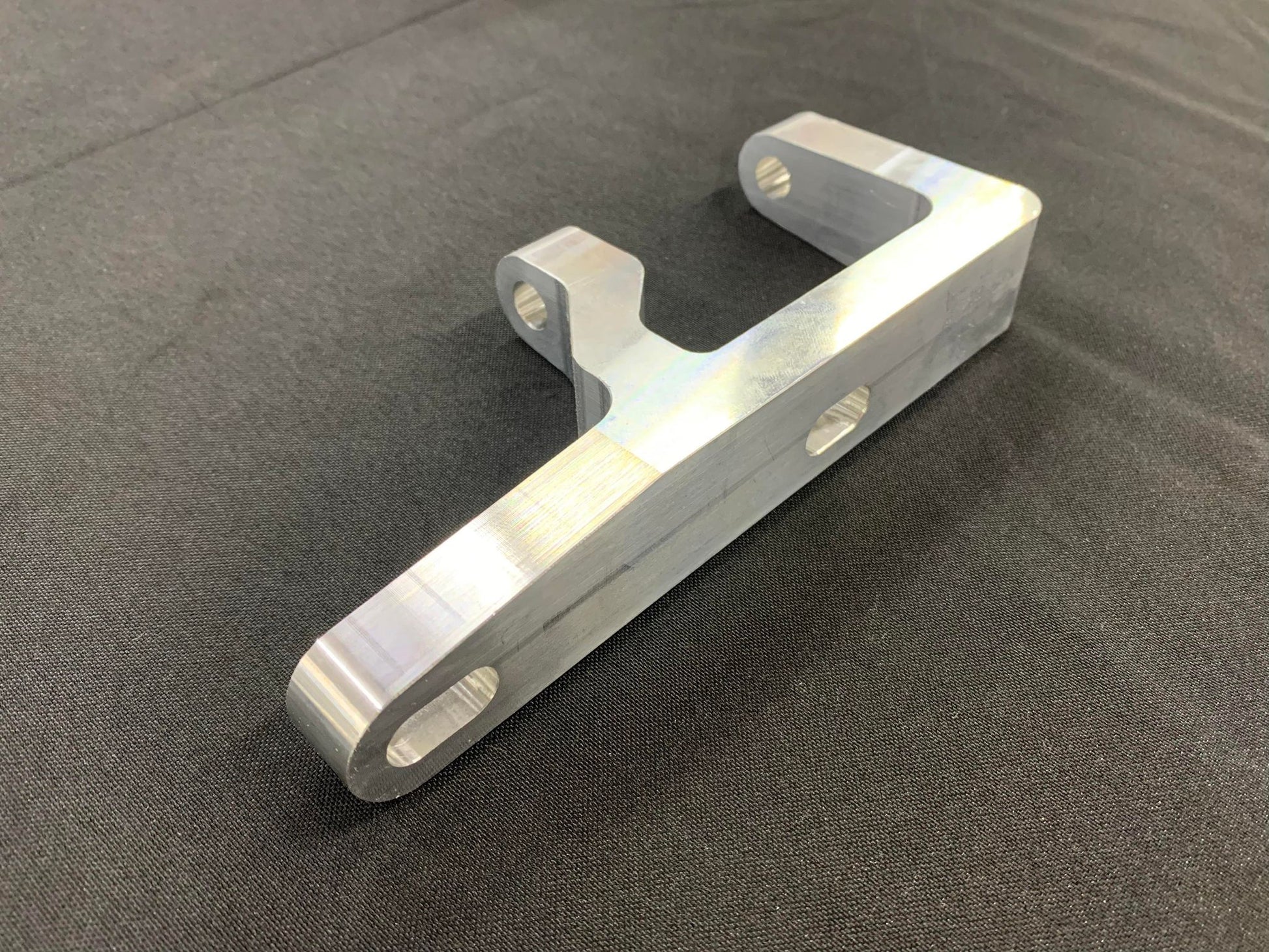

-CNC machined out of billet aluminum

-MADE IN THE USA!

Install notes:

The brackets are slotted allowing for adjustment to your needs. You must use a straight edge to line up the crank balancer and the AC compressor pulley. Failure to due so will result in damage to the belt, belt ejection and loss of power steering.

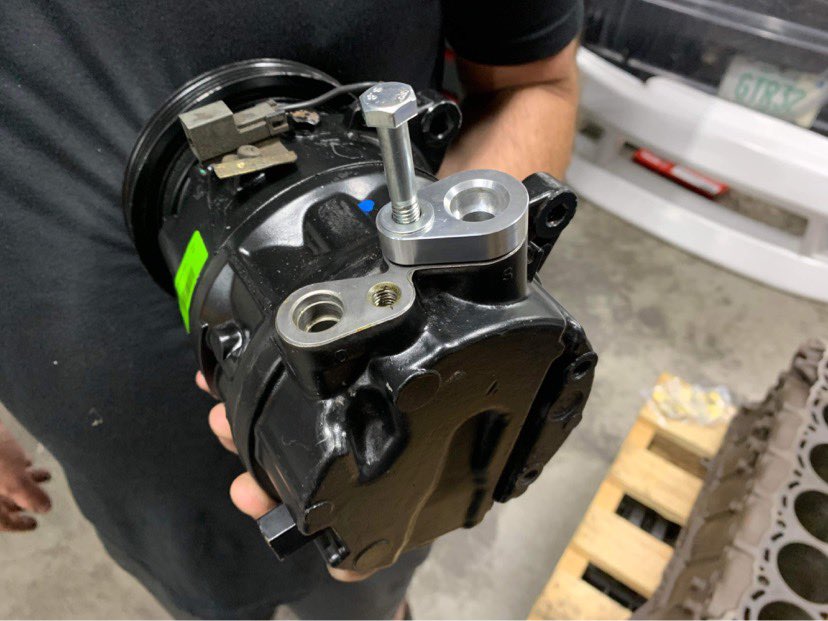

You must transfer the connector from your old compressor to the new one and drill out the AC line bolt hole on the firewall hose one size larger to connect to the compressor.

AC lines, condenser and evaporator must be professionally flushed before installing a new compressor. Failure to do so will likely damage the new compressor with debris.
